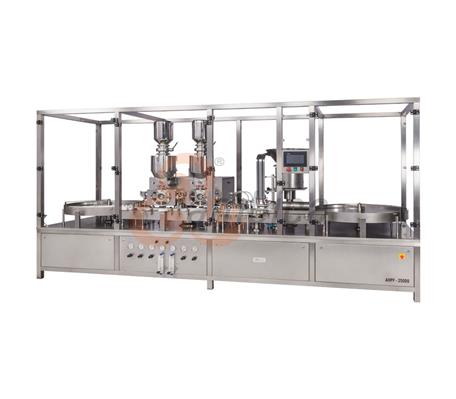

Automatic High Speed Injectable Dry Powder Filling with Servo Driven Pick and Place Type Rubber Stoppering Machine. Model: AHPF-250DS
Automatic High Speed Injectable Dry Powder Filling with Servo Driven Pick and Place Type Rubber Stoppering Machine. Model: AHPF-250DS
Automatic High Speed Injectable Dry Powder Filling with Servo Driven Pick and Place Type Rubber Stoppering Machine is motorised driven machine which has a separate motor moving parts in the machine thereby giving better accuracy.
It has a servo motor based pick and place type rubber stoppering system which ensures proper placement of rubber stopper. The machine is equipped vial sampling and rejection system in case of no rubber stopper on vial.
Product Details
Technical Specifications
12,000 Fills for Single Dose
6,000 Fills for Double Dose
4,000 Fills for Triple Dose
3,000 Fills for Four Dose
50 mg to 1.5 gm In single dose with help of extra change parts and 1.5 gm to 5 gm by double, triple and four dose depending upon bulk density of powder
5 ml to 30 ml
20 mm
Servo Driven Pick and Place System
3800 mm (L) X 1350 mm (W) X 2100 mm (H) (Approx.)
Salient Features
- Fully automatic filling and stoppering operation in one machine
- PLC with 10" touch screen HMI for machine control
- Starwheel type vial transport system for proper vial handling at such highspeed
- Servo based pick & place type rubber stoppering system
- Vial sampling system
- Rejection system for no rubber stoppers on vial
- Online pre - media filling system
- Toughened glass safety cabinet with SS structure
- Safety clutch system to avoid vial breakage
- Flush mounted gauge & regulator for easy setting
- Separate D.C. controller for vibratory rubber stopper bowl
- All contact parts are easily removable for autoclaving / sterilization
- Pure air filters for air and vacuum
- Pre & post gassing system
- Heavy duty base frame to ensure smooth & vibration free operation
- 3 nos. NVPC ports at customer’s desired location on machine (counters at customer's scope)
Optional Accessories
- Powder loading system above hopper
- Laminar air flow system
- Glove ports with imported gloves
- Additional bung feeding system
- Dust extraction unit
- Industrial PC with 21 CFR part 11 compliance SCADA system
