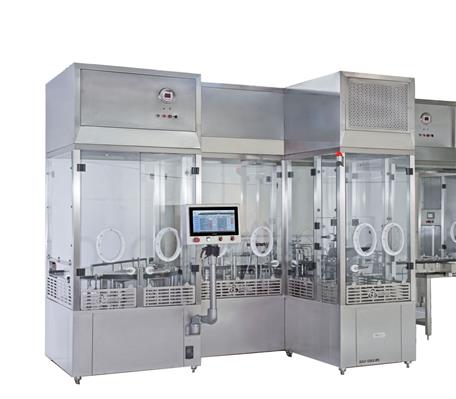

Automatic Vial Injectable Liquid Filling with Rubber Stoppering Machine Equipped with 100% In-Process Check Weighing System. Model: AVLF-120S-IPC
Automatic Vial Injectable Liquid Filling with Rubber Stoppering Machine Equipped with 100% In-Process Check Weighing System. Model: AVLF-120S-IPC
The equipment is an automated means to fill sterile liquid in a glass vials in linear intermittent motion and close the same with the help of servo driven pick and place type rubber stoppering system suitable for full or half rubber stoppering.
Filling can executed by means of rotary piston pumps or peristaltic pumps as per product characteristic and client's requirement. This machine comes in ORABS and can also be provided in CRABS and Isolator.
It has vial rejection system in case of under weight vial, over weight vial and missing rubber stopper on vial.
Product Details
Technical Specifications
AVLF-120S-IPC
No. of Heads
04
Output/Hour
upto 2,400 for 5/10 ml vials with 100% check weighing
Vial Sizes
2 ml to 100 ml
Rubber Stopper Sizes (Plain/Slotted)
13 mm and 20 mm
Rubber Stoppering Mechanism
Servo Driven Pick and Place Type
Machine Dimensions
3600 mm (L) X 1650 mm (W) X 2100 mm (H) (Approx.)
Salient Features
- 100% In-process vial check weighing system
- Industrial PC with 21 CFR part 11 compliance SCADA system
- Product wise recipe creation system
- Servo driven rotary piston pumps for liquid filling
- Vial rejection facility in case of under weight or over weight
- Servo driven pick and place type rubber stoppering system for proper placement of stoppers on vial
- Suitable for plain as well as slotted stoppers (for lyophilization), with the help of change parts
- Change parts of black colored delrin material
- Vial rejection system in case of no rubber stopper on it
- Toughened glass safety cabinet with SS structure
- Heavy duty base frame to ensure smooth & vibration free operation
- 2ml to 50ml filling in single dose and 100ml filling in double dose
- 3 nos. NVPC ports at customer’s desired location on machine (counters at customer's scope)
Optional Accessories
- Online CIP-SIP system
- Laminar air flow system
- Glove ports with imported gloves
- Loadcell based buffer tank
- Liquid recirculation system in buffer tank
- Additional bung feeding system
