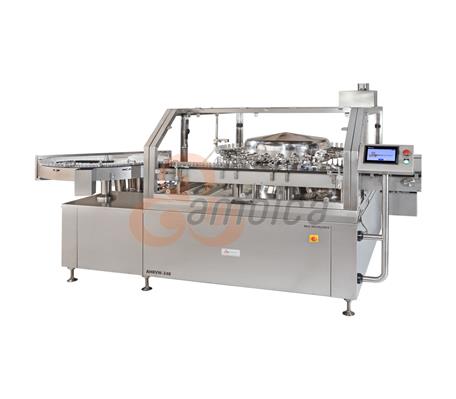

Automatic High Speed Rotary Vial Washing Machines. Models: AHRVW-120, AHRVW-240 and AHRVW-300
Automatic High Speed Rotary Vial Washing Machines. Models: AHRVW-120, AHRVW-240 and AHRVW-300
Rotary vial washing machines are designed to wash internal and external surface of vials in continuous rotary motion.
Vials are held by grippers which will invert its position to allow servo driven nozzles moving vertically in order to wash vials from the inside. It has 6 washing stations covered in dome, providing three types of internal water washes such as recycled water wash, purified water wash & WFI wash and three air washes where as to clean external surface it has one water and air wash controlled by PLC.
The design of machines are compact and ensures a clear visibility of washing activity.
Product Details
Technical Specifications
7,200 at 5/10 ml vial
Internal - 3 with water & 3 with air
External - 1 with water & 1 with air
2 ml to 100 ml
2750 mm (L) X 1900 mm (W) X 1450 mm (H) (Approx.)
14,400 at 5/10 ml Vial
Internal - 3 with water & 3 with air
External - 1 with water & 1 with air
2 ml to 100 ml
2950 mm (L) X 2100 mm (W) X 1450 mm (H) (Approx.)
18,000 at 5/10 ml Vial
Internal - 3 with water & 3 with air
External - 1 with water & 1 with air
2 ml to 100 ml
2950 mm (L) X 2100 mm (W) X 1450 mm (H) (Approx.)
Salient Features
- Continuous motion type rotary machine with variable speed system
- Change parts of black colored delrin material
- All media contact parts of SS 316L
- Water heater for recycled water tank with temperature controller and interlock
- Three types of water washes such as recycled water wash, purified water wash & WFI followed by sterile compressed air
- Code-7 type air & water filters
- Pressure transmitters for air & water with interlocks
- Temperature transmitters for monitoring temperature of recycled water, purified water and WFI with interlock
- Aseptic diaphragm type valves for air and water media
- Polycarbonate guard to cover the machine at rear & sideways
- Machine is so well designed and made that it can be easily dismantled & cleaned without any trouble
- SS grippers for proper holding of vial even at high water pressure
- Vapour exhaust system (duct at customer’s scope)
Optional Accessories
- Auto draining of all pipes at the end of every batch
- Industrial PC with 21 CFR part 11 compliance SCADA system
